For enterprises focusing on scrap car recycling, the scrap car shredder is by no means an ordinary device—it is a core solution to solve the pain points of "slow car body shell dismantling, low crushing efficiency, and thin recycling profits". The following starts from industry pain points, combines equipment details, technical value, and practical points, to clarify the professional logic of this equipment for recycling enterprises and dismantling plants.
1. First, Break the Deadlock: Industry Pain Points in Scrap Car Body Shell Recycling
The recycling of scrap car bodies (including body sheet metal, doors, bumpers, etc.) has long faced three major problems:
• Tedious pretreatment: The traditional process requires flattening the car body first, then cutting and crushing, which is time-consuming and has high labor costs;
• Low crushing efficiency: Traditional equipment such as hammer crushers are prone to jamming, and it takes 2-3 hours to process 1 ton of car bodies;
• Unqualified discharge: The particle size of the crushed materials is uneven, resulting in a loss rate of more than 15% in the subsequent metal sorting and smelting links.
2. Scrap Car Shredder: A "Precise Solution" to Pain Points
(1) Working Principle: The "Violent + Precise" Logic of Twin-Shaft Shearing
The equipment operates based on the twin-shaft meshing shearing principle: two main transmission shafts rotate synchronously in opposite directions, and the S-shaped shredding blades on the shafts form a composite action of "biting-tearing-shearing", directly crushing the complete car body without flattening in advance.

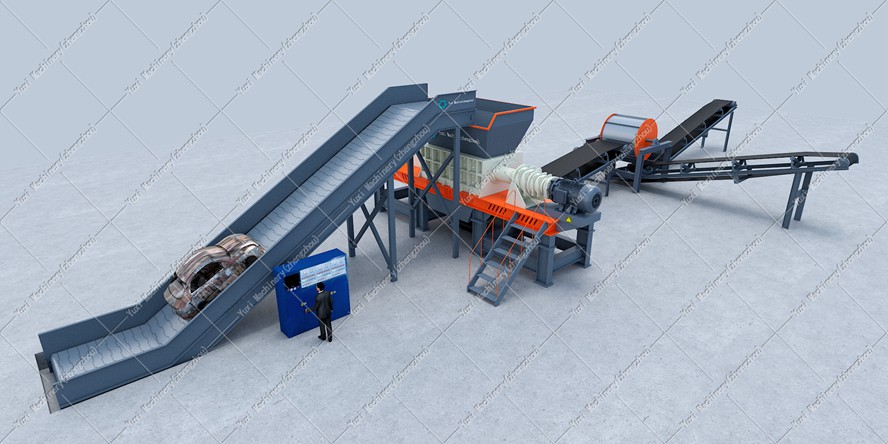

In terms of process, the feeding device (chain plate conveyor/inclined hopper) feeds materials → the "biting force" of the crushing chamber breaks through the metal strength → the blade gap (adjustable) controls the discharge particle size → the discharge conveyor belt completes material transfer, and the whole process automation degree reaches more than 90%.
(2) Core Structure: Professional Design from "Durability" to "Efficiency"
1. Shredding Chamber and Blade System
• Chamber: It is welded integrally with thickened manganese steel plate (Mn13), and lined with high-wear-resistant alloy liners, which increases impact resistance by 40%; the "openable side door" design shortens equipment maintenance time by 60% (compared with traditional closed chambers).
• Blades:
◦ Material: Manganese steel, high-chromium alloy can be selected, or H13/SKD11 die steel can be customized (for special materials such as galvanized/aluminum alloy shells);
◦ Process: After "surfacing strengthening + heat treatment quenching and tempering", the surface hardness reaches above 58HRC, and the S-shaped tooth structure increases the "grabbing-tearing" efficiency by 30%;
◦ Layout: The twin-shaft blades are arranged in a "spiral staggered" manner, completely eliminating crushing dead angles, and the jamming rate is reduced to less than 0.5%.
2. Transmission and Bearing Design for "Heavy Load Adaptation"
• Main Shaft & Reducer: The main shaft is a 42CrMo forging (integral quenching and tempering + surface quenching), matched with a hard-tooth-surface reducer, to achieve "low speed (80-150r/min), high torque" output, suitable for the "heavy load crushing working condition" of scrap car bodies, and the main shaft power covers 150-315HP (horsepower) to meet different production capacity requirements.
• Bearing: A self-aligning roller bearing (such as series 223) is selected. Its spherical raceway can automatically compensate for the installation error between the shaft and the bearing seat. Under the working condition of "long-term heavy load + slight deflection", the bearing life is extended to more than twice that of ordinary bearings, and the rated dynamic load is ≥2000kN.
3. Auxiliary System: Solving the Hidden Dangers of "Long-Term Operation"
• Water-Cooled Temperature Control: A circulating water-cooling channel is set for the blade and main shaft, and the temperature of the components is stabilized within 120°C during high-load crushing to avoid material "embrittlement" due to overheating;
• Intelligent Overload Protection: The current sensor and hydraulic tensioning device are linked. When encountering uncrushable objects (such as residual bolts), it will automatically stop and reverse discharge within 0.5 seconds, reducing the equipment failure rate by 40%.
3. Technical Advantages: Why Choose It?
Compared with traditional equipment, the "efficiency revolution" of the scrap car body shell shredder is reflected in:
1. Zero Time-Consuming Pretreatment: It can directly shred the entire car body, eliminating the procedures of "flattening the car and cutting", and it only takes 40-60 minutes to process 1 ton of car bodies;
2. Customized Discharge: The blade gap is adjustable, and the discharge particle size is precisely controlled within 2-12 inches, perfectly matching the feeding requirements of subsequent magnetic separation and eddy current separation;
3. Environmental Compliance: With a noise reduction seal and negative pressure dust removal interface, the noise during operation is ≤82dB (A-weighted) and the dust emission is ≤10mg/m³, meeting the strict environmental requirements of Europe, America and China;
4. Diversified Application: In addition to car bodies, it can also crush old bicycle/motorcycle frames, car cabs, etc., and one device covers 80% of the recycling needs of old metal shells.
4. Who Needs It? How to Use It?
(1) Applicable Scenarios

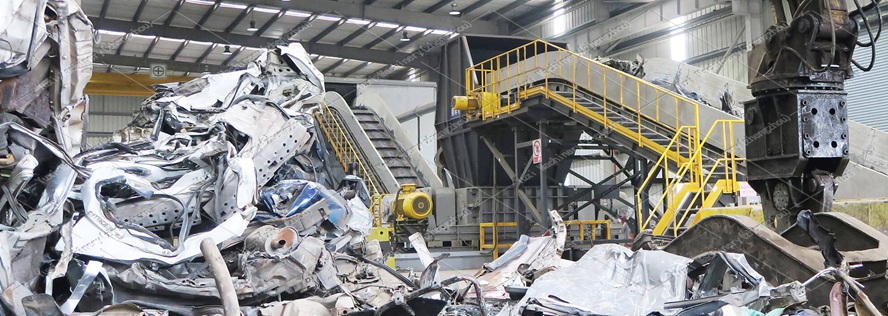

• Scrap Car Dismantling Center: As a core front-end device, it crushes car bodies into "easy-to-sort scraps", increasing the separation efficiency of non-ferrous metals (aluminum, copper) and ferrous metals (steel, iron) by 50%;
• Metal Recycling Processing Plant: It centrally crushes the recycled car sheet metal and bumpers, increasing the material bulk density by 30% and reducing storage and transportation costs;
• Recycling Resource Industrial Park: It is connected to the "scrap car disposal production line" and forms a closed loop with magnetic separation and sorting equipment, increasing the profit of the entire "crushing-sorting-smelting" process by 20%.
(2) Matching Suggestions
To maximize production capacity, you can match with an automated waste recycling line (chain plate conveying + vibrating sorting screen) and optional equipment (metal briquetting machine) to build an unmanned production line of "feeding-crushing-sorting-finished product".
5. Practical Q&A: Must-Read Before and After Purchase
1. How to Maintain the Blade After Wear?
The equipment adopts a "modular blade design", which can be quickly disassembled and replaced after wear; the old blade can be reused after "surfacing repair + re-heat treatment", and its service life can reach 60% of the new blade, greatly reducing consumable costs.
2. Can Car Parts Containing Rubber/Plastic Be Crushed?
Yes. The twin-shaft shearing principle is also effective for rubber, plastic and other non-metallic materials, and after crushing, non-metallic and metallic materials can enter the air separation/specific gravity separation process for separation at the same time, and the particle size of non-metallic materials after crushing can be controlled within 1-8 inches.
3. What Core Parameters Should Be Focused on When Selecting a Model?
Focus on:
◦ Main shaft power (directly determines the hourly processing capacity);
◦ Blade material (related to the ability to process special materials);
◦ Discharge particle size adjustment range (needs to match your own subsequent process);
◦ Equipment protection level (at least IP54, to cope with workshop dust/humidity).
For scrap car recycling enterprises, choosing the right shredder is choosing the right "profit breakthrough". If you are troubled by "low scrap car body recycling efficiency" or want to upgrade the production line, you can communicate at any time about equipment customization, factory inspection and other needs—let the equipment truly become the "efficiency engine" of the enterprise.
