Scrap Car Shell Shredder: A Professional Guide from Pain Point Resolution to Efficient Resource Utilization

In the scrap car processing industry, "low crushing efficiency, insufficient metal recovery rate, and frequent equipment jamming" are common pain points faced by practitioners. As a core equipment to solve these problems, the scrap car shell shredder directly determines the efficiency of scrap car resource utilization through its technical performance and application logic. Based on the actual needs of the industry, this article accurately analyzes the equipment's working principle, advantages, selection methods, and collaborative application, and adds a Q&A section to provide a one-stop solution to readers' doubts.

I. Scrap Car Shell Shredder: "Problem-Solving" Design of Working Principle and Structure

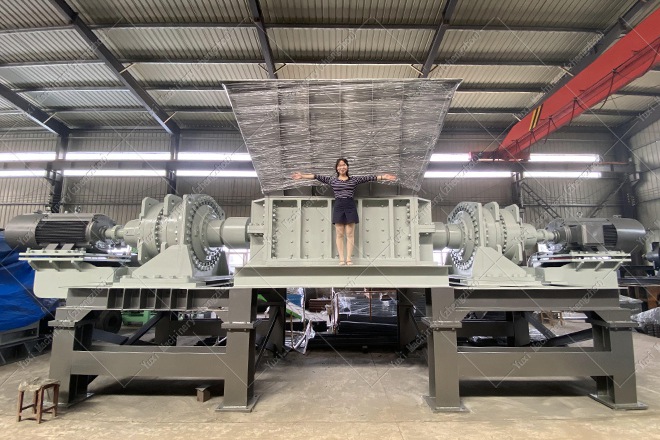

The scrap car shell shredder is a shear-type crushing equipment. Through the cooperative shearing action of moving knives and fixed knives, it tears high-strength car metal shells into regular scraps with a size of 50 - 200mm. Its structural design directly addresses the industry's pain points of "jamming and low efficiency":

    •Feeding System: The hydraulic pushing device can directly process the entire scrap car shell, eliminating redundant processes such as "car pressing and flattening" and significantly improving the preprocessing efficiency.

    •Crushing Chamber: Welded with thickened manganese steel plates, the inner lining is strong and wear-resistant; equipped with a water cooling device, it effectively reduces the temperature of knives and transmission components, avoiding equipment failures caused by overheating.

    •Knife Assembly: Embedded with S-shaped blades, the material can be selected from high-strength alloy steels such as AISI H13 and AISI D2. After multiple processes including overlay welding and forging for reinforcement, the wear-resistant service life exceeds 5000 hours.

    •Drive System: The combination of a high-power motor (55 - 160kW, or 75 - 215 horsepower) and a reducer provides stable torque output for "powerful shredding without jamming".

II. Core Advantages: Multi-Dimensional Breakthroughs in Efficiency, Cost, and Environmental Protection

1. "Leapfrog" Improvement in Crushing Efficiency

Aiming at the complex materials of car shells such as cold-rolled steel plates and galvanized plates, the equipment adopts a staggered knife arrangement to realize "one-time feeding and whole-shell crushing". The crushing efficiency is 50% higher than that of traditional equipment, with a processing capacity of 5 - 20 tons per hour (or 11,000 - 44,000 pounds per hour).

2. Optimization of Whole-Life Cycle Cost

    •Key components such as knives and main shafts adopt the "forgings + special heat treatment" process, which has excellent wear resistance and torsion resistance, meets ASTM material performance standards, and reduces the frequency of equipment maintenance.

    •The unit energy consumption is 20% lower than that of similar products, which can significantly save electricity costs in long-term use.

3. Dual Guarantee of Environmental Protection and Recycling Value

    •The design of a sealed crushing chamber and a dust removal interface ensures that the dust emission concentration meets the environmental protection requirement of ≤10 mg/m³; the noise during the shredding process is controlled below 85 dB(A), complying with industrial noise limit standards.

    •The crushed scraps have a regular shape, which is convenient for processes such as magnetic separation and eddy current separation, and the metal recovery rate can be increased to more than 95%.

III. Equipment Selection and Parameters: A "Decision Guide" for Accurate Demand Matching

1. Reference for Key Technical Parameters

2. Three Core Dimensions for Equipment Selection

    •Processing Scale: For a daily processing capacity of less than 50 tons, select a small-sized machine (55 - 90kW); for a daily processing capacity of more than 100 tons, a large-sized double-shaft machine is recommended to ensure continuous and efficient production.

    •Material and Process: Prioritize AISI H13 alloy steel knives, and confirm whether the knives have "repairability" to reduce long-term use costs.

    •Intelligent Configuration: Equipment with functions such as "load monitoring, automatic reversal, and fault early warning" can effectively avoid shutdowns caused by material jamming and improve production line stability.

IV. Collaboration with Car Crushers: Building an "Efficient Crushing Closed Loop"

The scrap car shell shredder and the car crusher form a "rough crushing + fine crushing" collaborative system:

    •The shredder crushes the car shell into scraps of 50 - 200mm (2 - 8 inches) to complete "preliminary volume reduction".

    •The crusher performs secondary processing on the scraps to finally obtain metal particles of 10 - 50mm (0.4 - 2 inches), which meets the needs of smelting or refined separation.

This collaboration can shorten the scrap car processing cycle by 40% and further increase the metal recovery rate by 5% - 8%, which is one of the optimal paths for large-scale resource utilization.

V. Industry Q&A: Addressing the Top Concerns of Practitioners

    1.What materials can the scrap car shell shredder process?

In addition to scrap car shells, it can also process various waste metals such as used bicycles, motorcycles, car doors, sheet metal, and steel furniture. The discharge particle size can be flexibly adjusted according to user needs.

    2.What are the key points of equipment maintenance?

The core maintenance points include: regularly checking the wear of the knives (repair or replacement is required when the wear exceeds 3mm), cleaning the residual materials in the crushing chamber, and paying attention to the coolant status of the water cooling system to ensure normal heat dissipation of the equipment.

    3.What is its core competitiveness compared with traditional crushers?

Traditional crushers mostly require "pre-pressing + multi-process crushing", while the scrap car shell shredder can "crush the whole shell with one-time feeding" and eliminate the car pressing process; at the same time, the knives have stronger wear resistance, and both the crushing efficiency and metal recovery rate are increased by about 50%.

    4.How can small and medium-sized recycling plants select cost-effective models?

It is recommended to prioritize models with a motor power of 75 - 90kW and a feed inlet size of approximately 1500×1000mm, which can not only meet daily processing needs but also control the initial investment cost.

The technical iteration of the scrap car shell shredder is reshaping the efficiency boundary of scrap car resource utilization. From the problem-solving structural design, to the demand-matching selection logic, and then to the collaborative value with downstream equipment, every detail points to the industry's demands for "high efficiency, environmental protection, and high returns". Mastering this professional knowledge is the key for practitioners to gain an advantage in the scrap car processing field.
