Introduction: Why This Guide Solves Your Practical Problems?
Whether you are a scrap recycling station owner, a steel mill purchasing manager, or a technical director of a renewable resource processing enterprise, the "volume reduction, efficiency, and compliance" processing of scrap metal has always been a core pain point. This article will transform the "professional threshold" of metal balers into direct and implementable decision-making basis for you, covering equipment technical details, production line linkage solutions, and investment return calculations.
1. Metal Balers: Principles + Classification, First Understand "Which One to Choose"

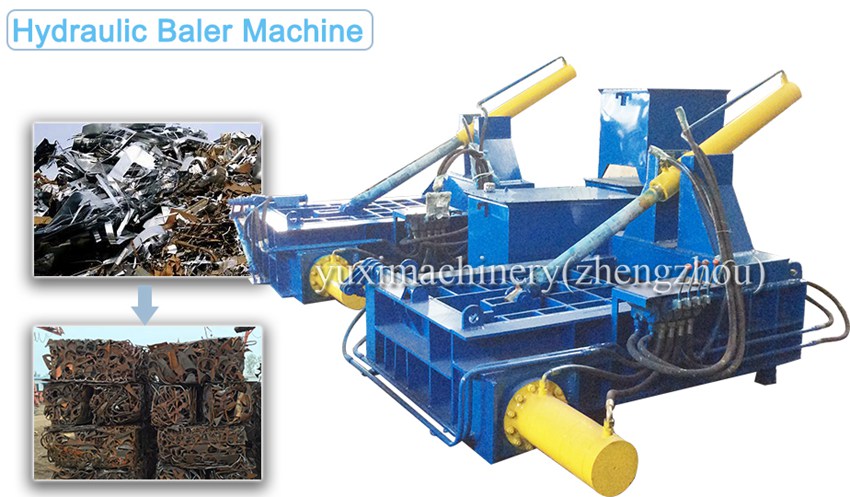

The core of a metal baler is a hydraulic transmission system — it converts the power of a motor (or diesel engine) into hydraulic energy through an oil pump, drives the hydraulic cylinder to move the pressure head, and squeezes scrap metal and other materials into high-density bales.
Based on the site, raw materials, and production capacity, you need to distinguish between these two mainstream models:
• Horizontal Metal Baler
◦ Applicable scenarios: Spacious site, daily scrap metal processing capacity ≥ 50 tons (such as the scrap steel recycling workshop of a large steel mill).
◦ Core advantages: The material box is laid out horizontally, the pressure head advances horizontally, the single compression volume is larger, and the bale size can match large transport trucks or smelting furnace mouths.
• Vertical Metal Baler
◦ Applicable scenarios: Narrow site, daily processing capacity ≤ 20 tons (such as small recycling sites, waste aluminum/copper processing in auto repair shops).
◦ Core advantages: The material box is designed vertically, no complicated foundation is required, the requirement for raw material "crushing degree" is lower, and it is suitable for quick baling of scattered scrap.
2. Key Structure Dismantling: Before Buying Equipment, These Details Determine "How Easy It Is to Use"

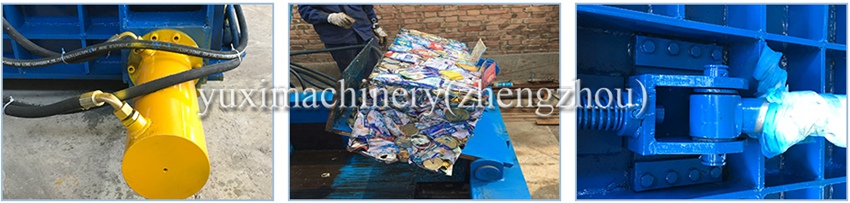

1. Hydraulic System: The Core of Power, Directly Affecting Efficiency
• In the hydraulic pump station, a piston pump is more suitable for medium and large equipment than a gear pump — it has strong pressure resistance (can withstand a pressure of 12-30MPa), stable flow, and even when processing hard scrap steel, it is not easy to jam;
• No power supply in remote sites? Choose a diesel engine-driven hydraulic pump station, which can switch power seamlessly and is suitable for mines and remote recycling points.
• Seals are an "invisible key point": High-quality models will use spherical structure sealing components (such as the connection design of the push cylinder and the push head), which can disperse pressure, reduce oil seal wear, and have a service life of more than 8000 hours (ordinary seals usually only have 3000 hours).
2. Material Box + Pressure Head: Wear Resistance + Safety, Depends on Material and Design
• The material box must be welded with ASTM A514 Grade Q high-strength steel (this is a general wear-resistant steel standard in the European and American metallurgical industry), and the inner wall is lined with wear-resistant plates, so that even if sharp steel chips and waste copper rub repeatedly, it is not easy to deform;
• The surface of the pressure head must undergo "quenching + tempering" heat treatment, and the hardness must be at least HRC55 (it can be understood as "the harder, the more wear-resistant"), and the material is AISI 4340 alloy structural steel (this kind of steel has extremely strong impact resistance).
• The unloading method should be "selected as needed":
◦ Flip-type: The hydraulic cylinder turns the material box over, and the bale slides out automatically, suitable for heavy bales;
◦ Push-type: The auxiliary cylinder pushes the bale out from one end of the material box, suitable for medium-sized bales;
◦ Manual picking type (packaging type): For small and light bales, such as fine recycling of waste aluminum chips and waste copper wires.
3. Safety + Customization: Don’t Ignore "How Long It Can Be Used and Whether It Is Safe"
• Safety design depends on these: Whether there are protective nets in dangerous parts, whether there are safety switches in key positions, and whether there is an emergency stop button (which can cut off power with one press) — it is reliable only if it meets the mechanical safety regulations of OSHA (Occupational Safety and Health Administration);
• Customization is the "key to saving money": The size of the material box (determining the amount of material loaded at one time), the size of the bale (to match your subsequent truck/furnace mouth), and the hydraulic pressure (the tighter the pressure, the higher the density, but too high pressure also consumes electricity), these parameters can be modified according to your raw materials and site.
In scrap metal recycling, "crushing first and then baling" can double the efficiency — a small metal crusher is the "front assistant" of the baler.
Its function is to break large objects (such as old refrigerators, auto parts) into small pieces, so that during the subsequent baling process:
• Feeding is faster (no need to cut materials manually);
• Pressing is denser (there are not so many gaps between small pieces).
You need to pay attention to the core details of the small crusher:
• The crushing chamber uses a stepped liner (which can realize "secondary crushing" of materials, and the discharged material is more uniform), and the liner must be ASTM A128 Class III wear-resistant cast iron (the wear resistance of this material is 3 times that of ordinary cast iron);
• The main shaft is equipped with a hydraulic coupling (which can buffer the impact force when starting, protecting the motor), and meets the API 671 power transmission standard;
• The screen can be replaced (you can change the screen to the desired size), and it is designed with reference to the ISO 565 screening test method.
If you connect the "crusher + baler" to form a production line, the scrap metal processing efficiency can be increased by more than 40%, and the transportation space can also be saved.
4. Industry Application + Cost-Saving Calculation: You’ll Know "Whether It’s Worth It" After Reading
1. Steel Mill/Metallurgical Industry
After scrap steel is baled, it becomes "qualified furnace charge", which can increase the charging efficiency of the converter by 30%, and also reduce fuel consumption (because there is less air between the scrap steel). The density of the compressed scrap steel must meet the AISI 2019 Scrap Steel Acceptance Standard (simply put, "pressed tightly enough so that it is not easy to scatter when entering the furnace").
2. Non-Ferrous Metal Recycling (Waste Aluminum, Waste Copper, etc.)
After baling, the material density can reach 1.5-3.0 tons/cubic meter, and the transportation cost is directly reduced by 50% (originally a truck could carry 10 tons, now it can carry 20 tons). The density standard refers to the specifications of CRI (Copper Recycling Institute).
3. Solid Waste Treatment Center (Waste Paper, Plastic, etc.)
After baling, the storage space can be saved by 60% (originally a pile of waste paper occupied 100 square meters, now it only occupies 40 square meters), which meets the solid waste storage standards of the US EPA (Environmental Protection Agency).
5. Must-Read Q&A: Avoid the "Pitfalls" You Can Think of in Advance
1. How to choose hydraulic oil?
Answer: Choose the viscosity according to the temperature (for example, in places with temperatures from -10℃ to 40℃, choose ISO VG46 anti-wear hydraulic oil), and also pay attention to the "anti-emulsification" and "anti-wear" properties. Change the oil and clean the fuel tank every 2000 hours, referring to the ASTM D6158 test standard.
2. How to extend the service life of the wear parts (hammer head, liner, screen) of the crusher?
Answer: Choose high-chromium alloy for the hammer head (hardness above HRC60, meeting the ASTM A532 Class III standard); regularly adjust the gap between the hammer head and the liner; do not let stones and hard alloys mix into the raw materials.
3. Should I choose a horizontal or vertical baler?
Answer: Large site, daily processing of ≥50 tons of scrap metal → choose horizontal (meeting NFPA 79 electrical safety standards); small site, daily processing of ≤20 tons → choose vertical (meeting OSHA 1926 site safety regulations).
4. What daily maintenance should be done?
Answer: Check hydraulic oil leakage and pressure every day; clean the waste in the material box every week; add grease to the hinge points every month (must meet the NLGI Grade 2 standard); check the hydraulic cylinder seal and whether the piston rod is straight every quarter (referring to the ASME Y14.5 dimension standard).
As a core equipment in the scrap recycling chain, metal balers directly impact your efficiency and profits. Choosing the right model (horizontal/vertical for your scenario), focusing on hydraulic system and structural quality, and pairing with a small metal crusher to build a linked line, can fundamentally solve scrap metal pain points like slow processing, high transportation costs, and difficult storage. Equipment complying with European and American standards offers better durability, safety and compliance — a reliable reference for overseas scrap recycling and metallurgical professionals. For equipment selection or production line planning, you can further discuss personalized solutions based on your raw material and site conditions.
